Easyfit - Boom Endings

ARAG presents the new quick connection system for EASYFIT stainless steel boom. EASYFIT allows you to assemble the boom without threads, offering a fast and modular solution absolutely new in the market. read more read less

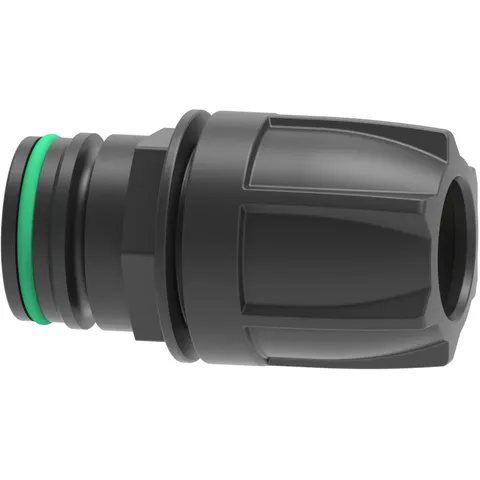

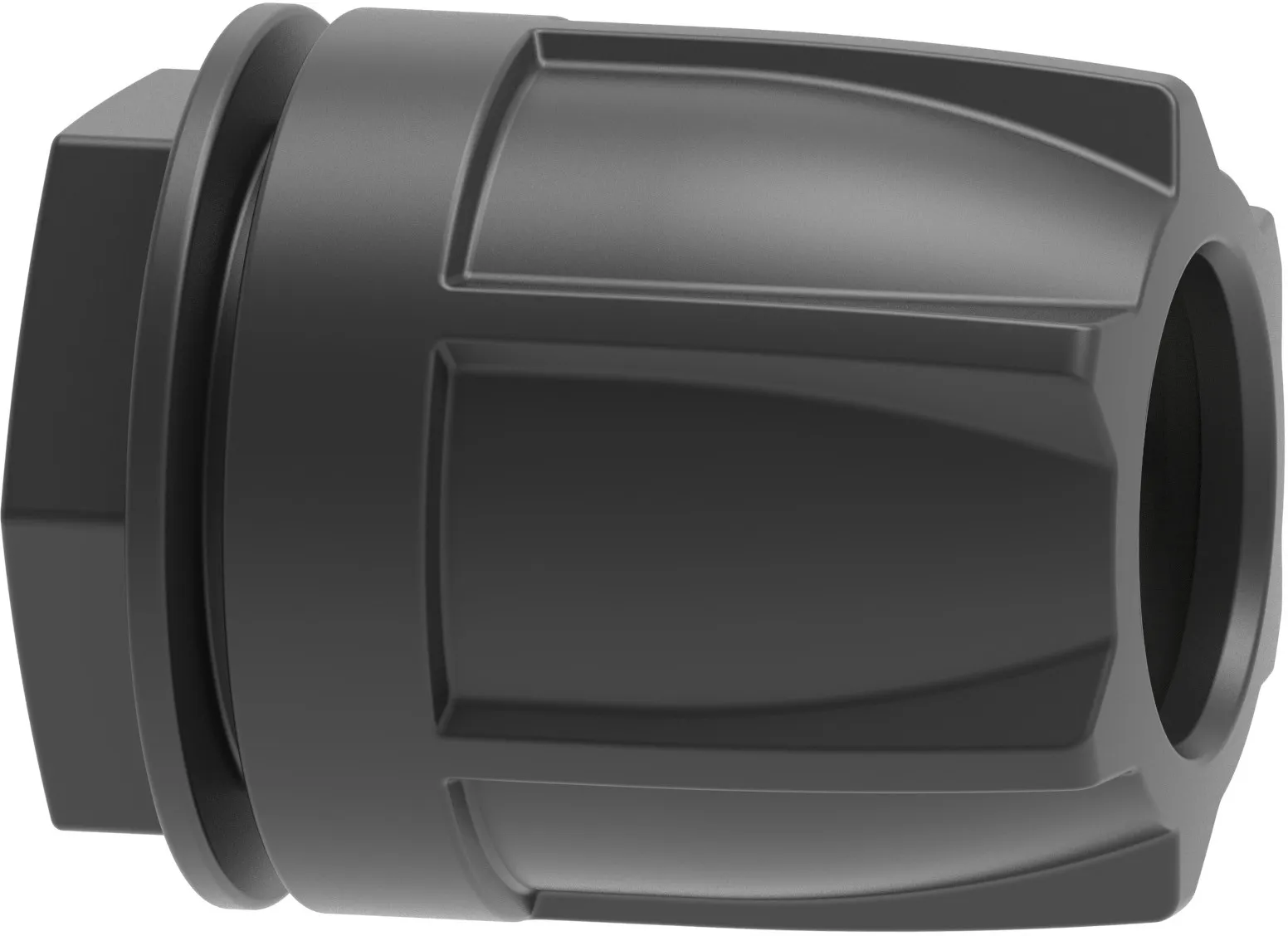

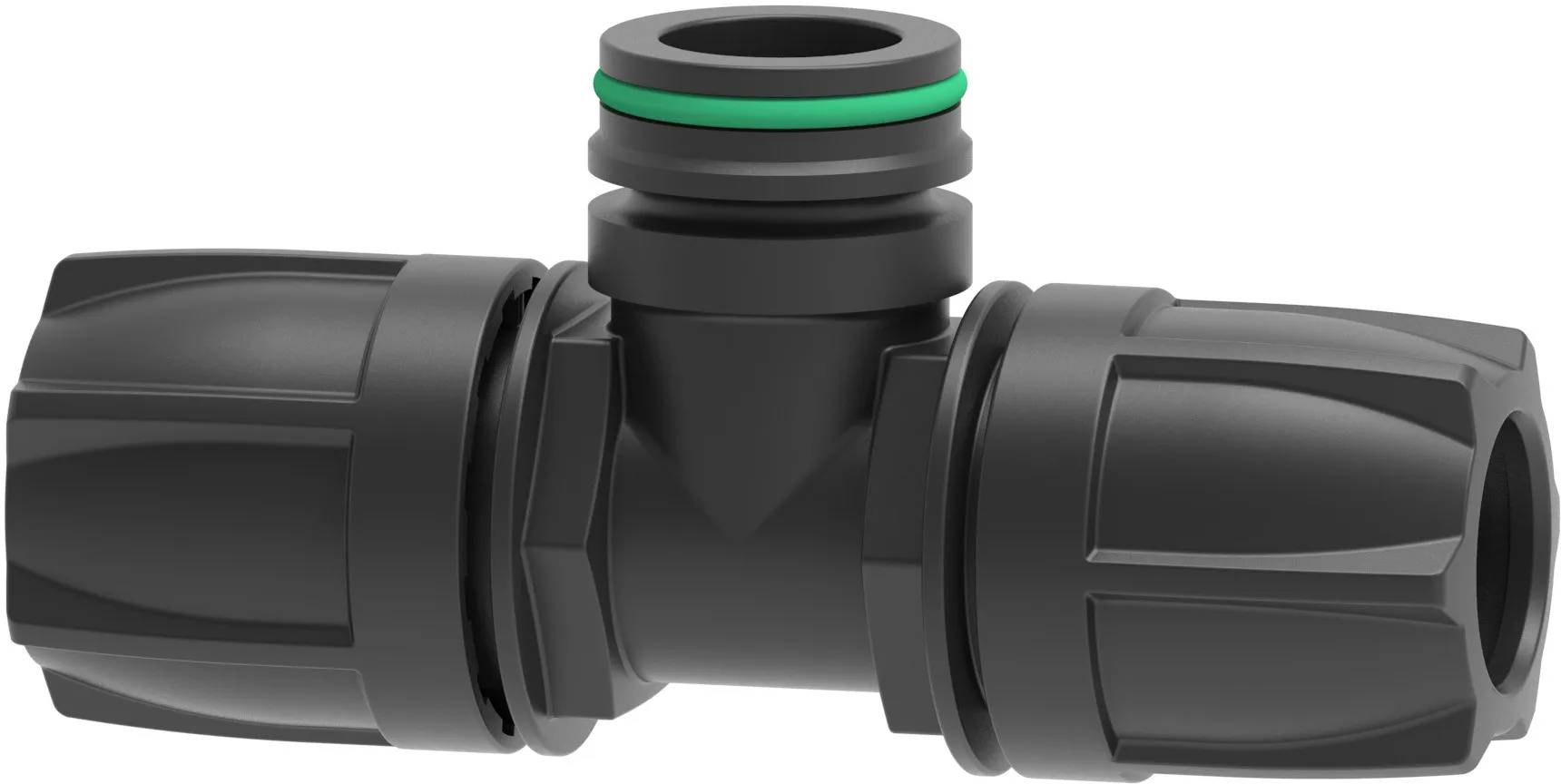

EASYFIT CLOSED BOOM END FITT - 1-2 Inch EASYFIT Q-CONN BOOM END FITTING - 1-2 Inch EASYFIT Q-CONN T - 1-2 Inch
Qty.
Add To Enquiry
ARAG presents the new quick connection system for EASYFIT stainless steel boom. EASYFIT allows you to assemble the boom without threads, offering a fast and modular solution absolutely new in the market.

TECHNICAL FEATURES
Exclusive “AUTOLOCK” system that prevents implants slackening in presence of strong vibrations.
No need of threads at the end of the boom.
Permits the use of pipes with small wall thicknesses.
It does not reduce the passage inside the tube.
Thanks to the boom-end fork coupling fittings, it is possible to connect any type of “T” connector within the wide ARAG range (hose straight, curved or nipples).
Available for pipe sizes 1/2 “, 3/4” and 1”.
Body POM.
Internal O’Ring in EPDM.
O’Ring in EPDM (VITON®  on request) and fork couplings included.
