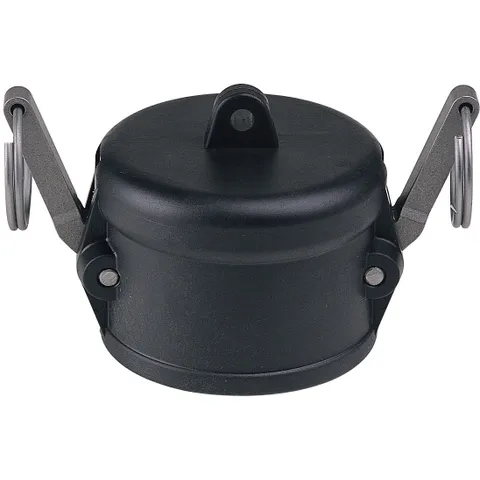

Camlock plug for Male coupling

Camlock plug for Male coupling read more read less

Qty.

TECHNICAL FEATURES

Suitable to couplings MIL-C-27487.
STAINLESS STEEL locking levers for maximum mechanical strength and corrosion resistance (2 locking levers up to 3” models and 3 levers for 4” models).
The material used, fibreglass-reinforced polypropylene, ensures excellent mechanical strength and good resistance against chemical agents.
On request, also available in fibreglass-reinforced Nylon.
BSP threads (NPT on request).
A tapered seat for the O-ring seal is fitted in the female thread BSP versions (compatible with all new ARAG fittings).
Max. working pressure 9 BAR (130 PSI) for the 3/4” to 2” models; max. 5 BAR (75 PSI) for the 3” and 4” models.
EPDM standard gaskets (Viton® and NBR on request).
