PGP Ultra Gear-Driven Rotors

PGP Ultra Gear-Driven Rotors read more read less

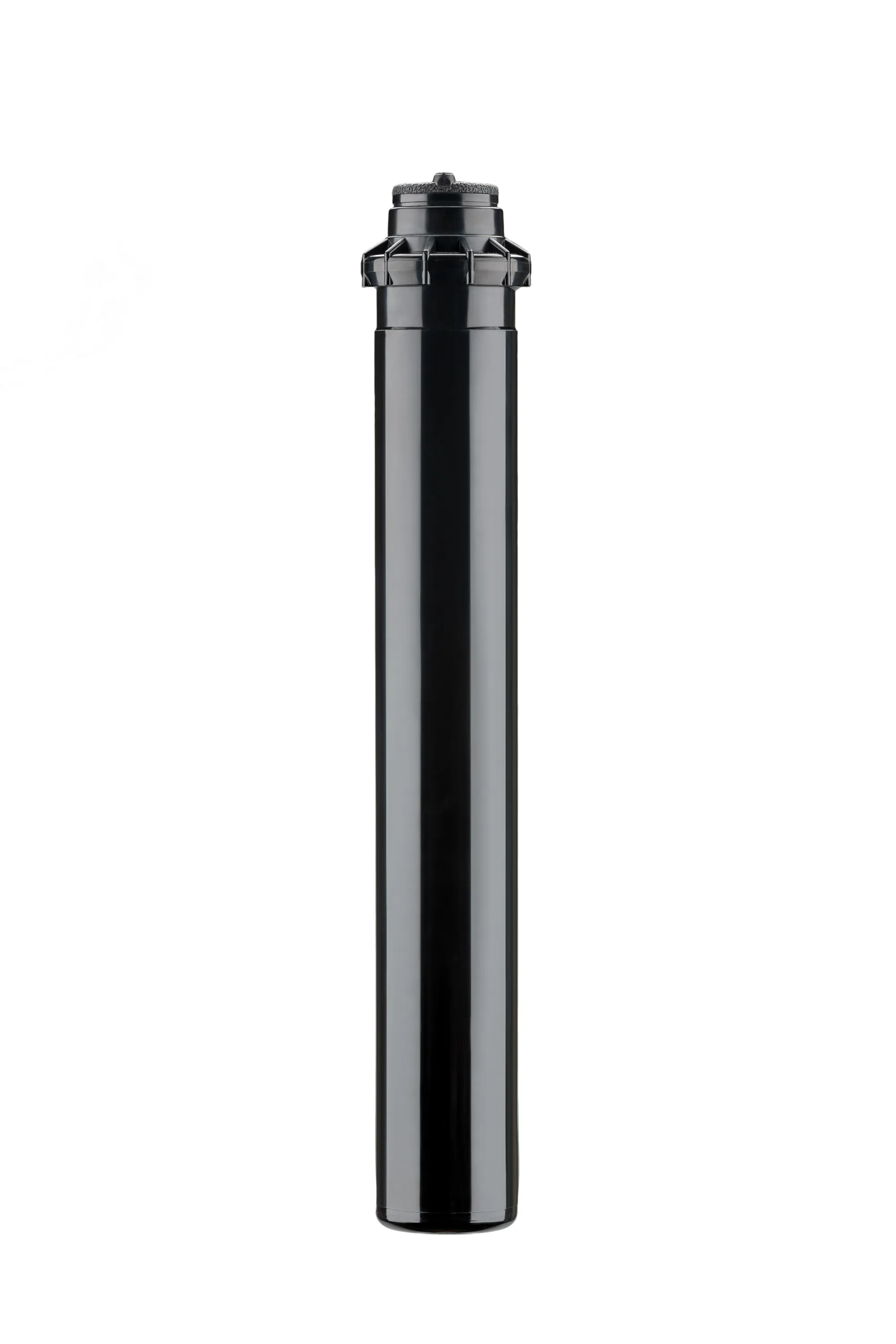

Pop-up 300mm Shrub (standpipe mounted) Pop-up 100mm
Qty.
Add To Enquiry

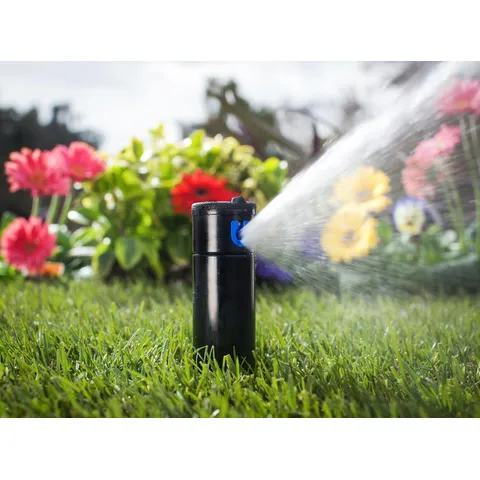

The PGP Ultra raises the bar for rotor technology with powerful features developed over three decades of research, customer feedback, and lab testing.
The PGP Ultra takes the foundation of the best-selling PGP Rotor and raises the bar with a variety of new features developed over three decades of research, customer feedback, and lab testing. Among the most notable improvements of the PGP Ultra is its non-strippable drive and automatic arc return. These two features work to allow the turret to be turned without causing damage, and return the turret to its original arc regardless of where it is turned. Other advanced features include 34 nozzle options with several radius choices, and a headed slot and set screw. The diversity of the PGP Ultra offers system installers an array of efficient options on any site.

KEY BENEFITS
  • Patented automatic arc return feature returns the turret back to the original arc pattern if vandalised; adjustable arc from 50° to 360°.
  • Non-strippable drive mechanism is protected from damage if turned in the opposite direction of travel.
  • Part- and full-circle in one model for flexibility across landscapes and reduced inventory.
  • Headed and slotted setscrew allows radius adjustment with a Hunter wrench or flat-blade screwdriver.
  • Flat-top nozzles allow fast, easy insertion.
  • QuickCheck™ arc mechanism for fast arc adjustment.
AUTOMATIC ARC RETURN
This patented feature returns the turret to the original arc regardless of where it is turned. This ensures vandal protection in any environment.

NON-STRIPPABLE DRIVE
The patented, non-strippable, vandal proof drive mechanism enables the turret to be turned without causing damage.

PART- AND FULL-CIRCLE IN ONE MODEL
Patented non-reversing 360 for part- and full-circle in one model, from 50 to 360 degrees.

HEADED AND SLOTTED SET SCREW
Use a slotted screwdriver or the Hunter wrench for easier and simpler adjustments as needed.

OPTIONAL RECLAIMED WATER ID
Purple caps indicate where non-potable irrigation water is being used.

DRAIN CHECK VALVE (UP TO 10 FT. OF ELEVATION)
The drain check valve keeps lines from draining when the system is shut off. This saves water, reduces liability, and increases system life.
