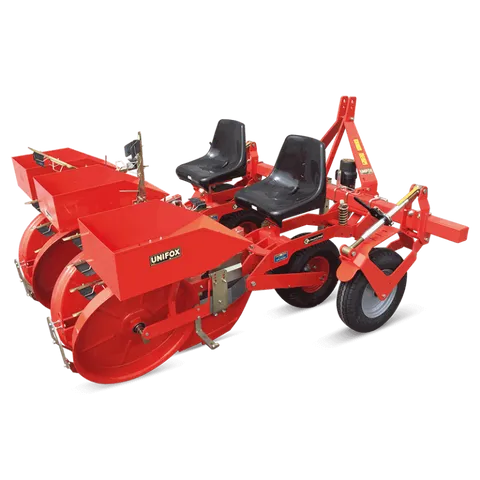

The UNIFOX can undoubtedly be considrered as a "Universal Transplanter System" that allows the planting of all types of seedlings with bare or balled roots and conical, pyramidal or cubical in shape. (E.g. Vegetables, Flowers, Nursery and tobacco seedlings, Rose cuttings, rootstocks for fruit tress, sweet potatoe etc.)
Key points:

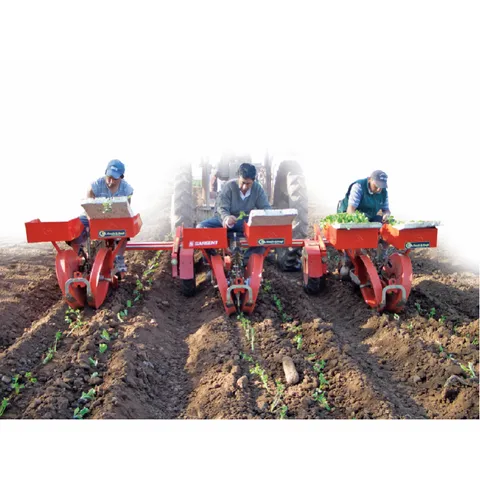

* Gripper type Ideally suited for non-conventional seedlings like Rose cuttings without balled roots
* Independent Floating Transplant units
* Transplant units individually driven by their own drive wheel
* Production 2000/2500 plants per hour per row
General Characteristics:

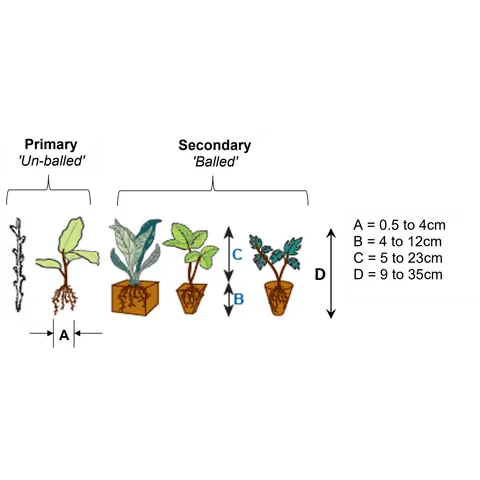

- Transplants bare or balled roots
- Distribution system; Vertical rotating with 10 grippers (Std)
- Independent and floating transplant units
- Individual row unit drive wheel
- Distance between rows, Minimum = 50cm
with Tandem Toolbar, Minimum = 25cm
- Inter-plant spacing, 27-80cm Standard
Optional: 64-140cm, 18-53cm, 13-40cm
- Operator production up to 2000/2500 plants per hour per row unit
- Edgeless Steel packing wheels fitted as standard (Rubber opt.)
- Range of optional equipment available
