3 Point Mounted Venturi Sprayers

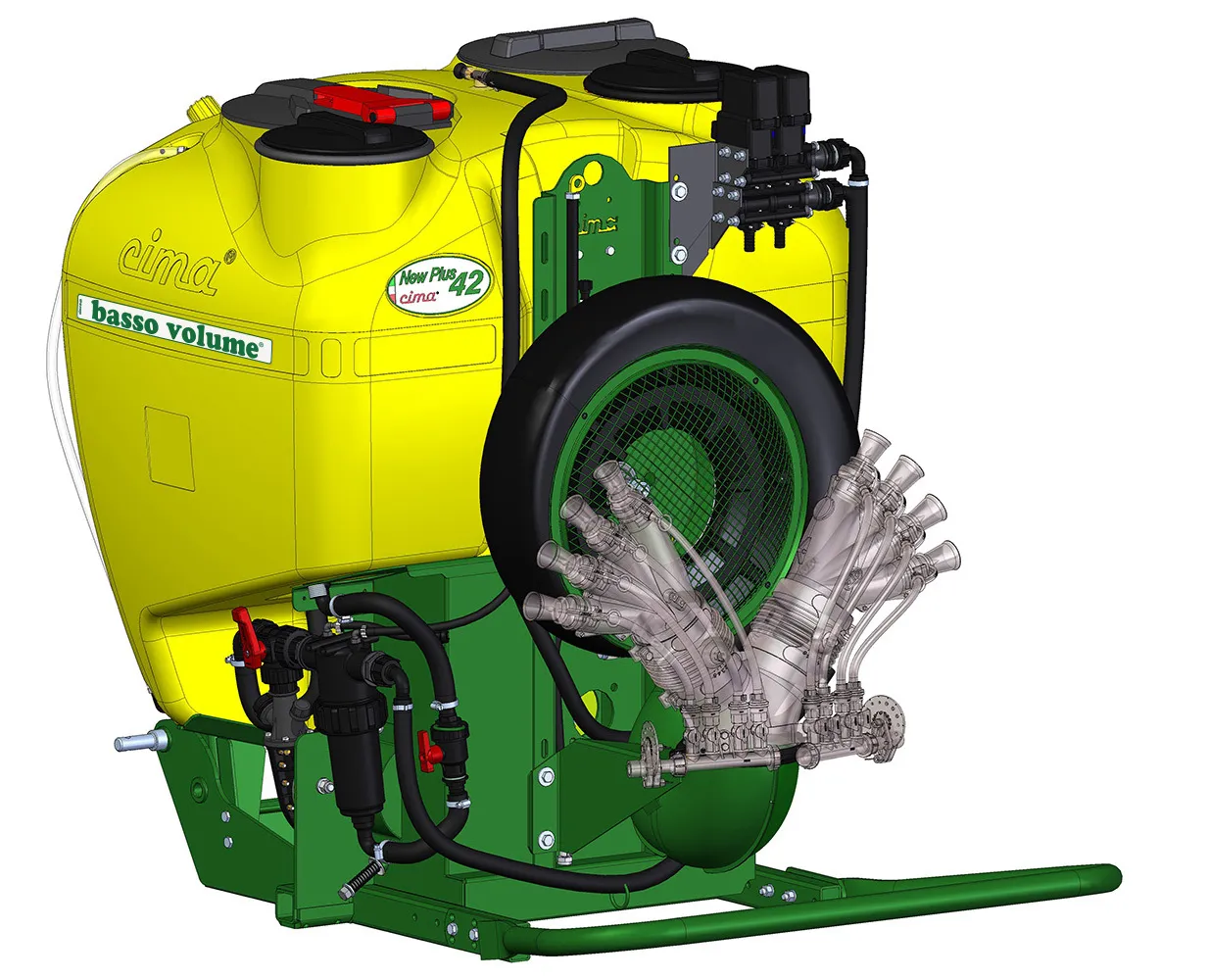

SKU: 3 Point Mounted Venturi SprayersThe 3-point mounted low volume sprayer model New Plus 42 , with pneumatic atomization based on the "Venturi Tube" principle, performs chemical treatments with a low volume of water. read more read less
Vineyard 5+5 Venturi - Optional Extras
- 1 X 3m Airgun for UCT10 (CI215000/3)
3m Airgun for UCT10
Qty.
Tobacco Cannon (No Swivel) - Optional Extras
- 1 X Hydraulic Swivel for UCT 41 / 42 (UCT49/1)
- 1 X Mechanical Swivel for UCT 41/42 (UCT46)
Pecan Extreme - Optional Extras
- 1 X Pecan Convertion Kit Standard to Extreme (UCT70C)
Qty.
Add to Enquiry
SPECIFICATIONS - EQUIPMENT ONLY FOR EC REGULATION
- 300 and 400lt. main tank in polyethylene equipped with gratuated level indicator
- 15lt. hand-washing tank and spray-line rinsing tank (GOLD models only) (30 or 40lt depending on the sprayer model)
- Hydraulic pre-mixer incorporated within the basket filter
- Two agitation systems, liquid and air
- C.I.M.A.'S centrifugal pump (no diaphrams or valves) made of anticorrosive material and requiring no maintenance.
- Pressure regulator with manual control and Ø 100mm pressure gauge (0÷6 atm)
- Spraying ON/OFF control by remote control electro-valves from tractor seat
- Rotating calibration discs, 15 positions - delivery from 70 to 3300 l/h
- Poly-V belt drive with automatic tensioner.
- Overrunning clutch – safety stop device in the event the PTO is suddenly stopped
- Steel frame, electrostatic painted with polyester powder designed for installing optional support wheels
- Steel high pressure radial fan with fan disengagement, polyethylene fan housing
