Rovic Syncroseed Small Grain Planter
A minimum-till wheat planter. read more read less
Features
Frame
• Frame sizes 15 - 53 tine
• Frame configuration 2 or 3 rank
• Tine spacing, 285 and 300mm
Hopper
• Hopper capacity from 3600 to 17000 Litre.
• Hopper configurations, 1, 2 & 3 bin.
• Seeding rates from 1 - 500 kg/ha.
Seeding tine
• Modular integrated
• Working depth 50 – 200mm
• Hydraulic breakout 400 – 700kg
(1) Air-seeder System

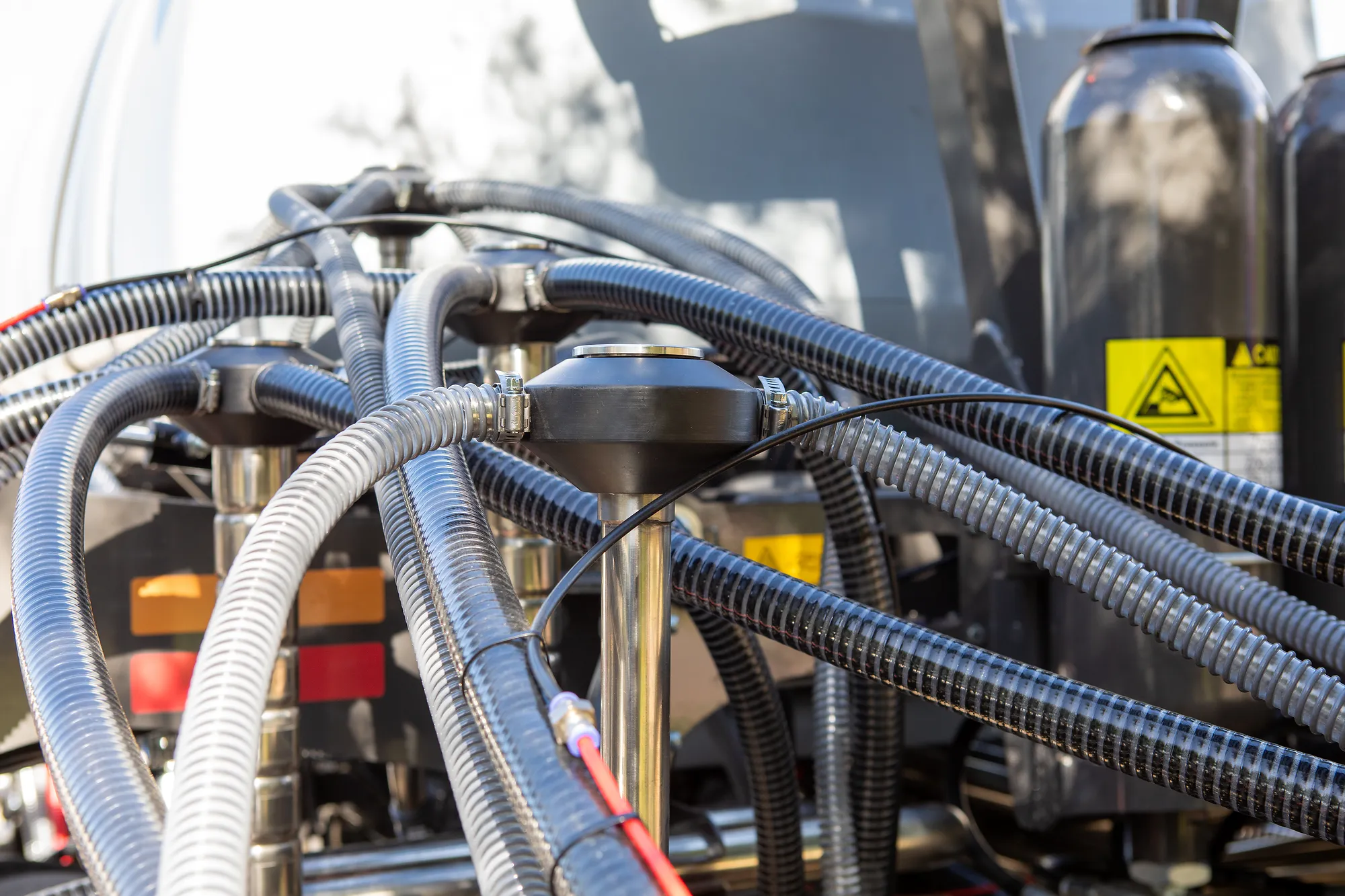

The range of Rovic Air-seeder systems consists of three models. These would include two Drawbar mounted models (4200L & 6200L) and Trailed Quad models ranging in size from 3600L up to 17000L. The Air-seeder systems have been designed to work successfully in combination with any seeding implement (Modular) whether big or small. To date, the Rovic Air-seeder systems, have earned the reputation of being the workhorse of the air seeder industry, where its reliability and strength are sought after features. The 1, 2 or 3 main hopper configuration plus the ‘small seeds bin’ (210L & 400L) option allows the air seeders to handle seed ranging from large legumes to canola, where seeding rates are as low as 1kg/ha, or the option to distribute large and small seed, as well as trace elements through different air streams. In broad-acre operation, the air seeder can be set up to sow up to 500kg/ha. With the standard fitted oil cooler that cools the hydraulic oil and in turn has the advantage of drying the air providing more efficient product distribution. (Prevents clogging of the hoses)
(2) Modular integrated Seeding tine

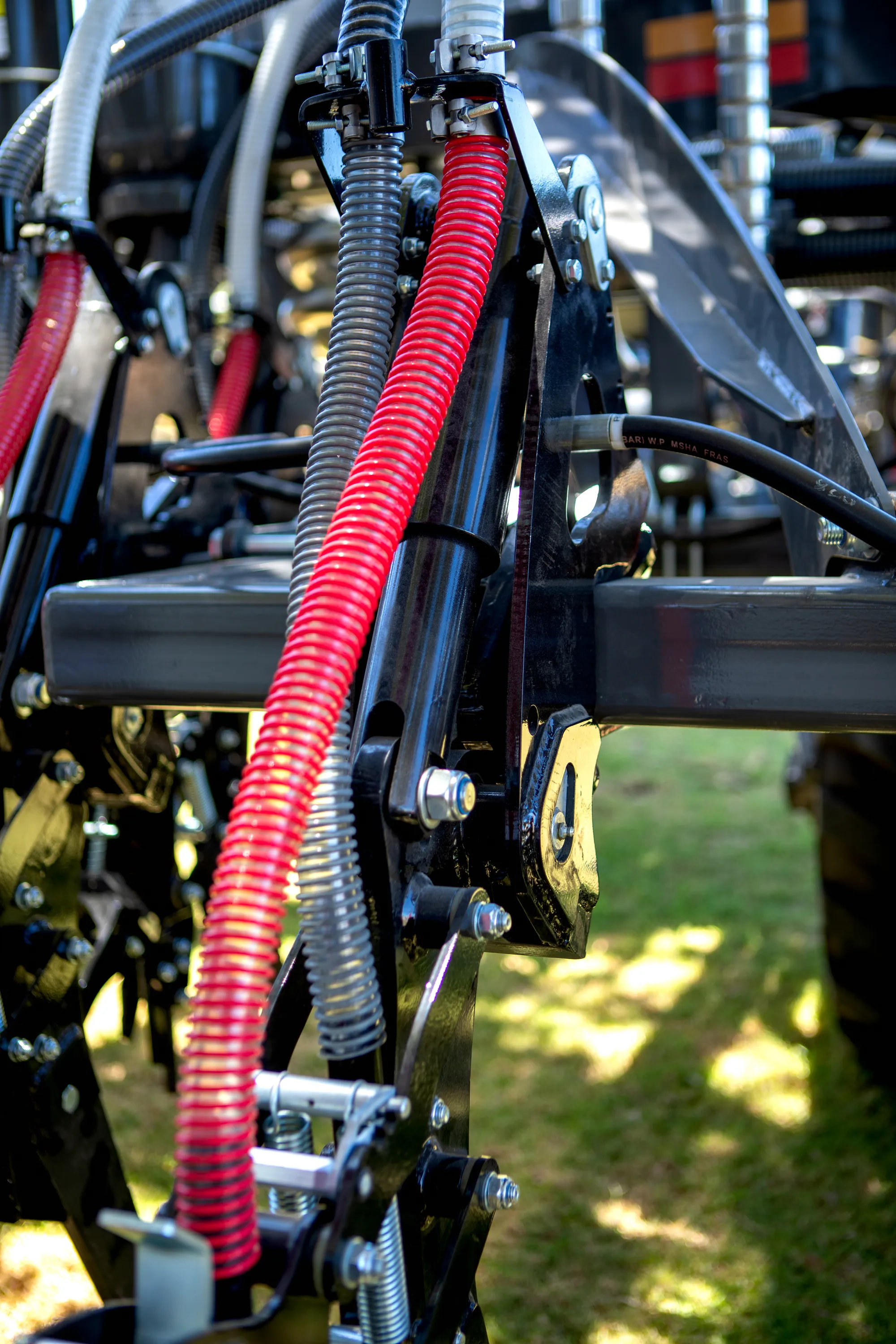

The Rovic Modular integrated seeding tine (consisting of; (1) Hydraulic seeding tine, (2) Seeding unit and (3) Press wheel) has specifically been designed to plant wheat in the diversity of soil conditions found in South Africa whilst achieving excellent trash flow. The modular seeding unit can be fitted to a range of frames, and with the proper ‘Air-seeder’ combination, will meet the stringent requirements of the professional contractor and farmer.

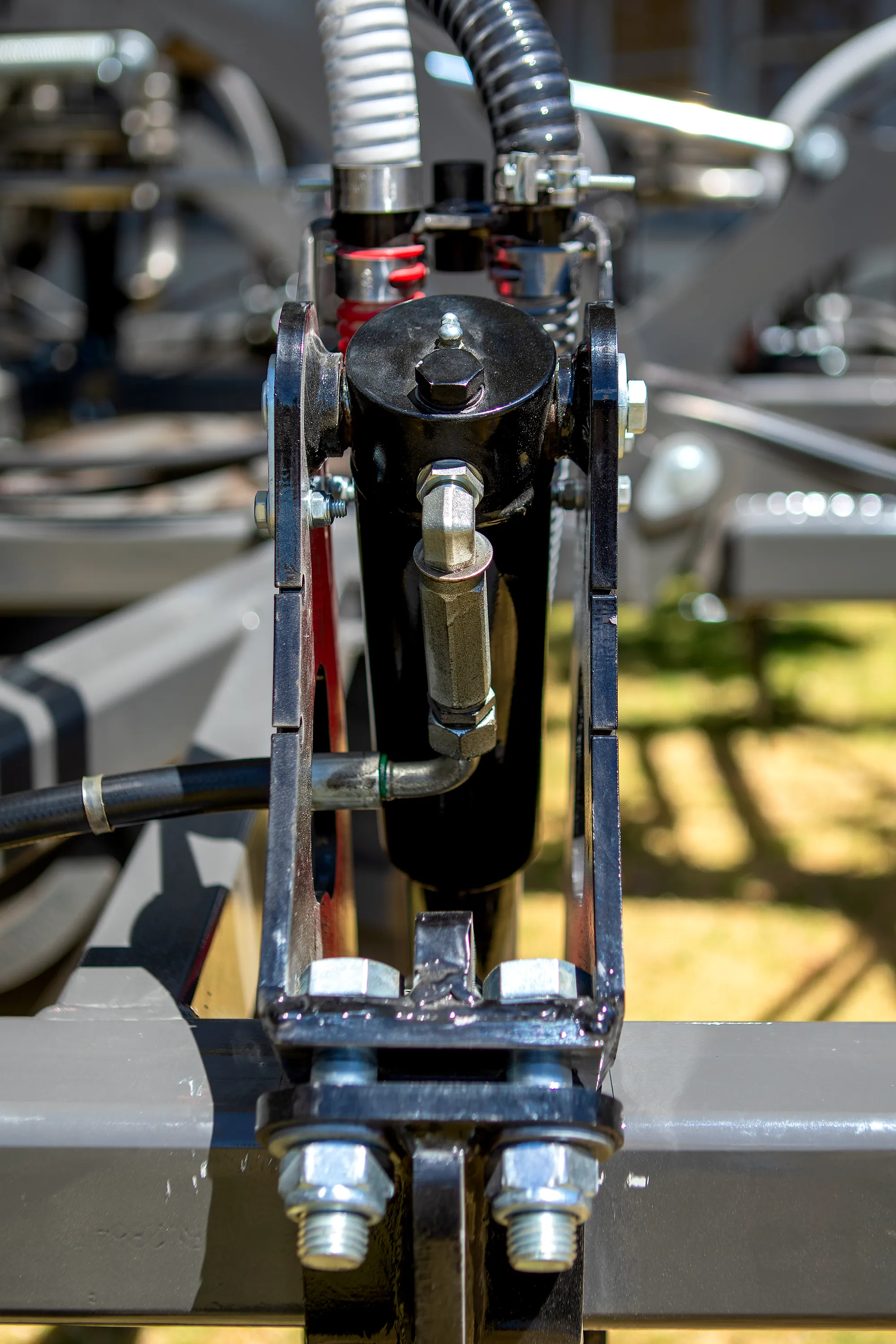

(1) The Hydraulic seeding tine has purposely been designed for primary soil preparation in tough stony conditions (Moisture seeking) and has an optimum working depth of between 50 and 200mm with a theoretical power requirement of 5 - 8kw per tine. The break out force on the hydraulic tine is variable and can be set between 400 to 700kg and is regulated by means of a liquid nitrogen accumulator set by the tractors hydraulics. The maximum tine jump height of the tine is 365mm. The 20mm shank with a slim replaceable point (16mm wide) ensures minimal soil disturbance and trash blocking and in extreme trash conditions, an 18” or 20” coulter wheel can be fitted to facilitate trash flow. The ground engaging part of the point is fitted with tungsten tiles to ensure a long working life. Fertilizer placement is done via a fertilizer tube fitted to the rear of the shank, the tubes allow the fertilizer to be placed throughout the furrow opened by the point.

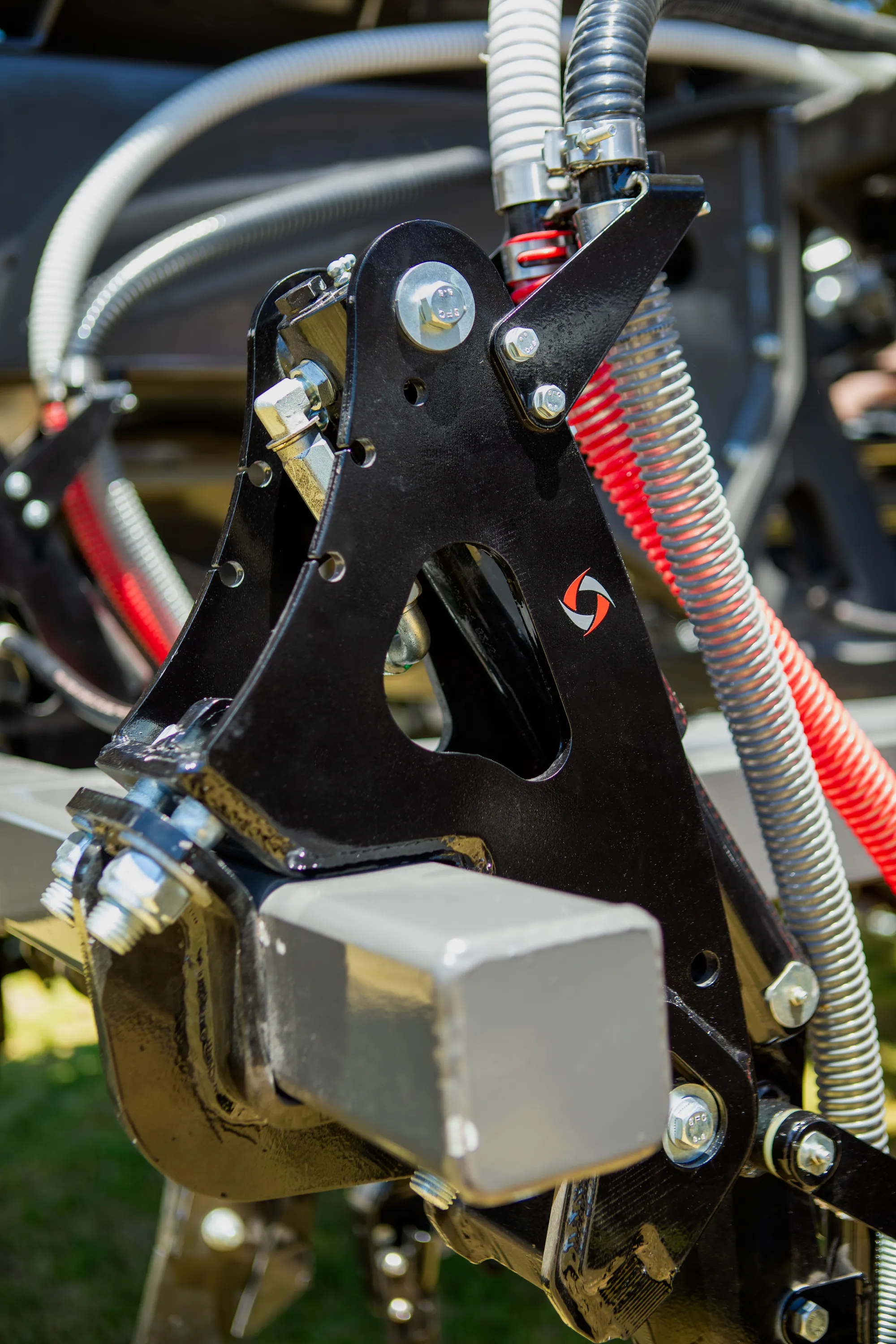

(2) The Seeding unit with its parallel linkage mount, bolts onto the rear of the hydraulic seeding tine and its patented (SA Patent 07/08240) double seed chute guarantees better seed distribution and spacing in the row. The double seed chute also allows one to plant one or two different types of seed at the same time.
(3) Press wheels A range of press wheels can be fitted (Please enquire)
Unique Selling Points
- New design seeding unit with a breakaway force of 600kg at 90 bar hydraulic pressure.
- Easy adjustment on seeding unit for closing wheel pressure and seeding depth.

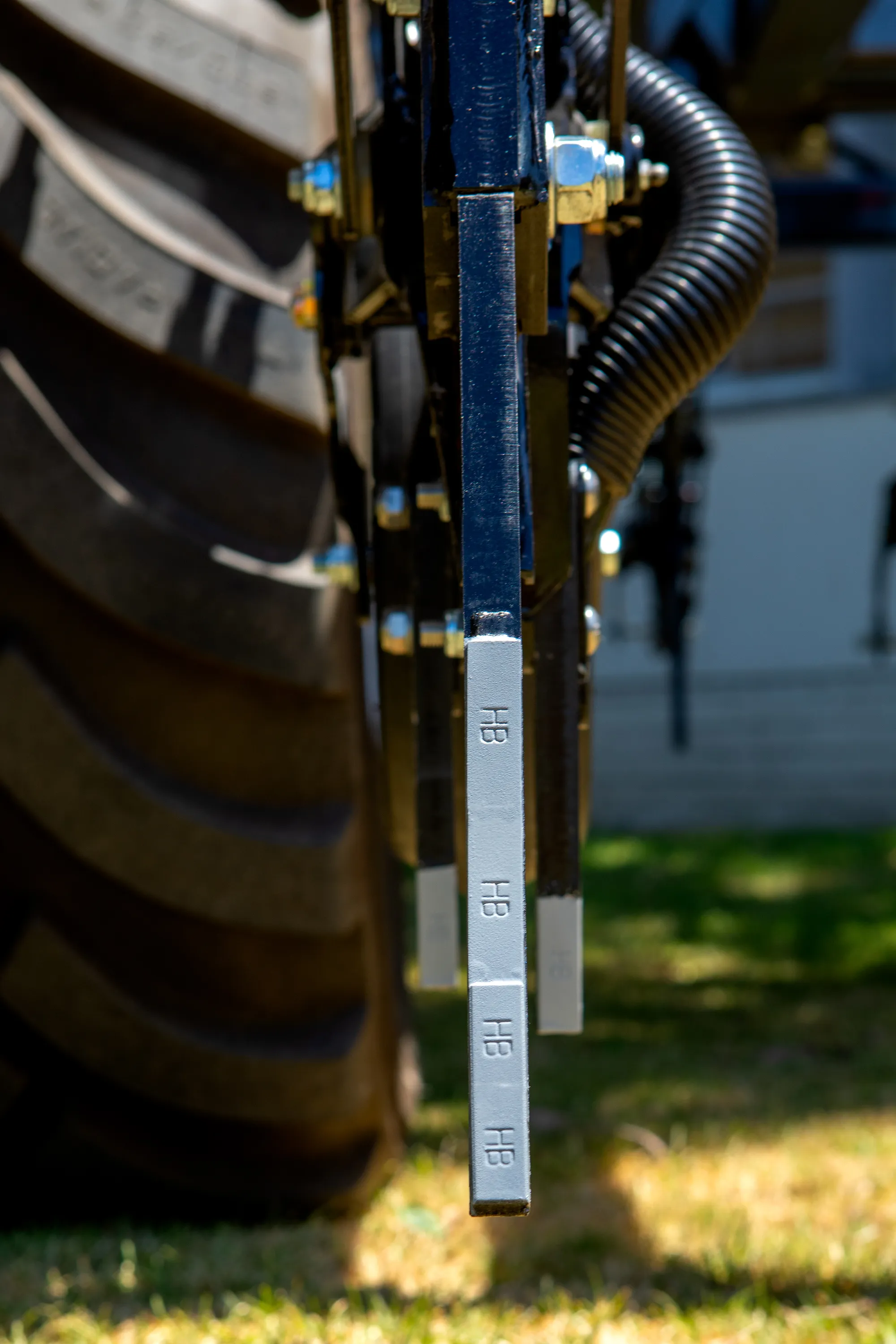

- Tine fitted with 16mm wide replaceable tungsten tile point.
- Patented dual seed placement.

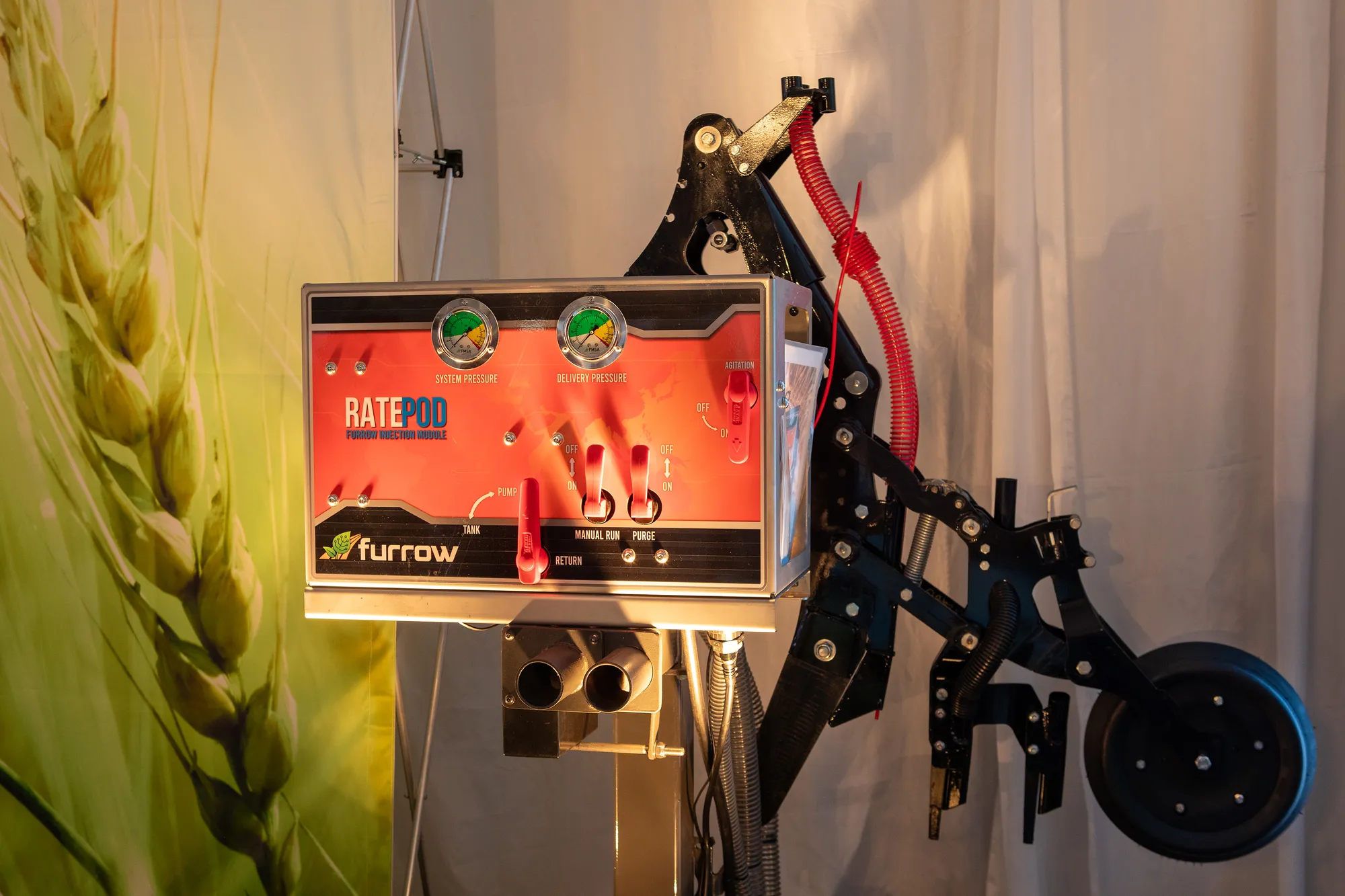

- In Furrow Management system can be fitted as optional to place liquid product where it is needed.
- Air system supply using a Crary fan that is driven by a bent axis piston motor. Motor will ensure reliable and high-performance
service life. High-capacity oil cooler as standard will ensure that overheating of hydraulic oil is limited.
Other Features

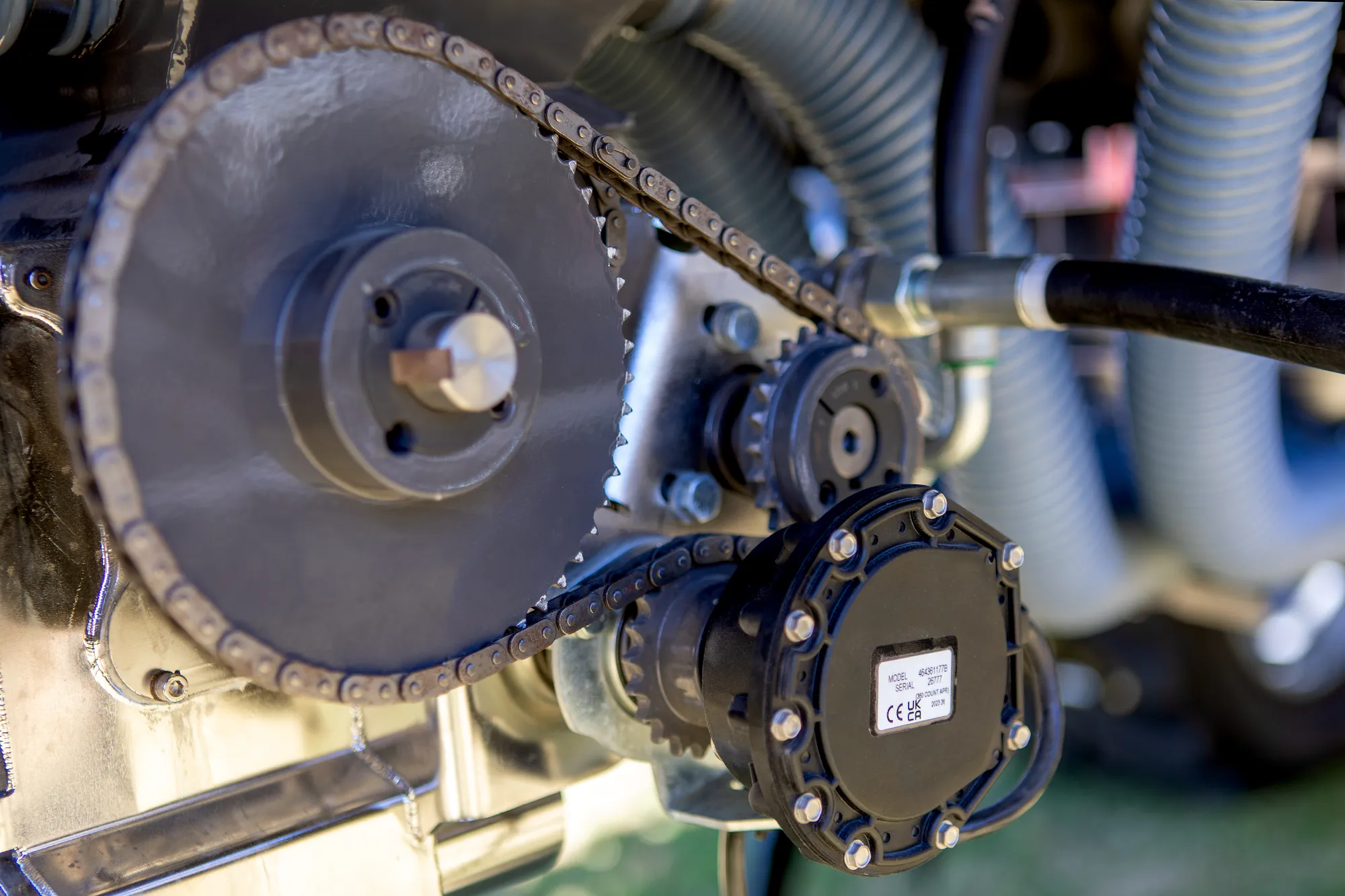

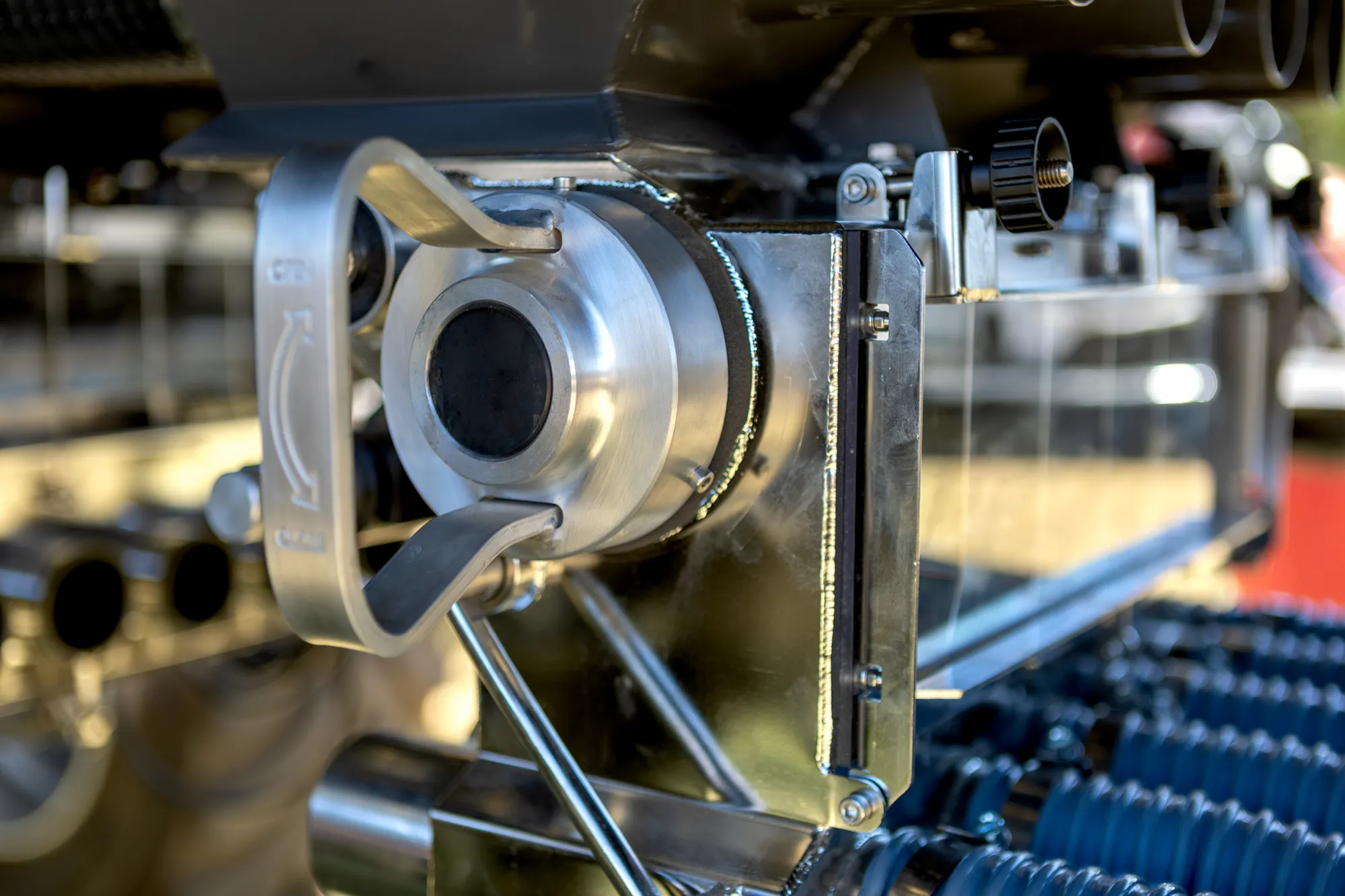

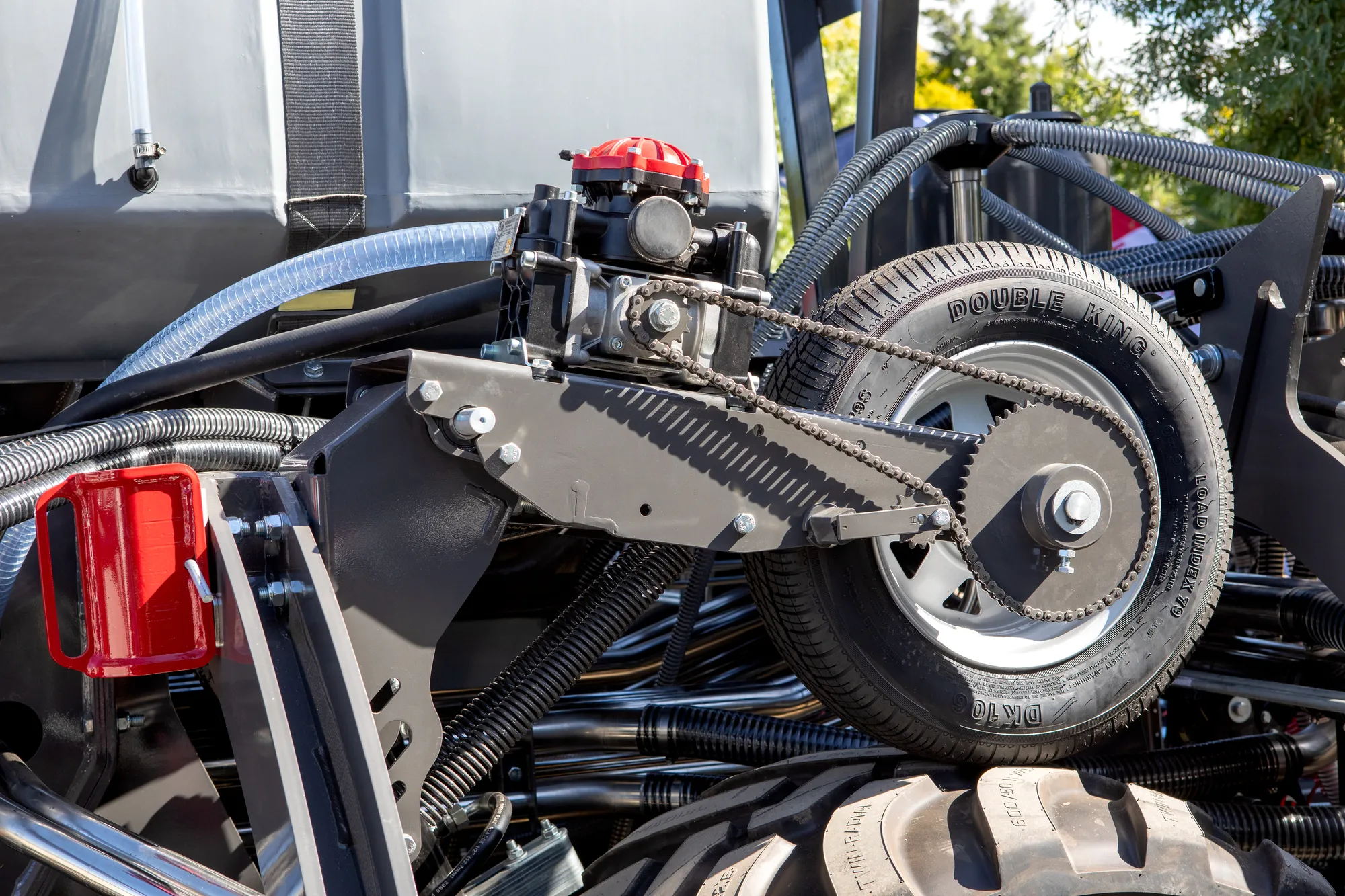

- Maximum granular fertilizer delivery of 400 kg/ha, supplied by the latest metering unit that will ensure constant and accurate
metering of product, even in hilly conditions. - Fine seed option available for all models with various placement positions.
- With seed
- In seed furrow
- Next to seed furrow

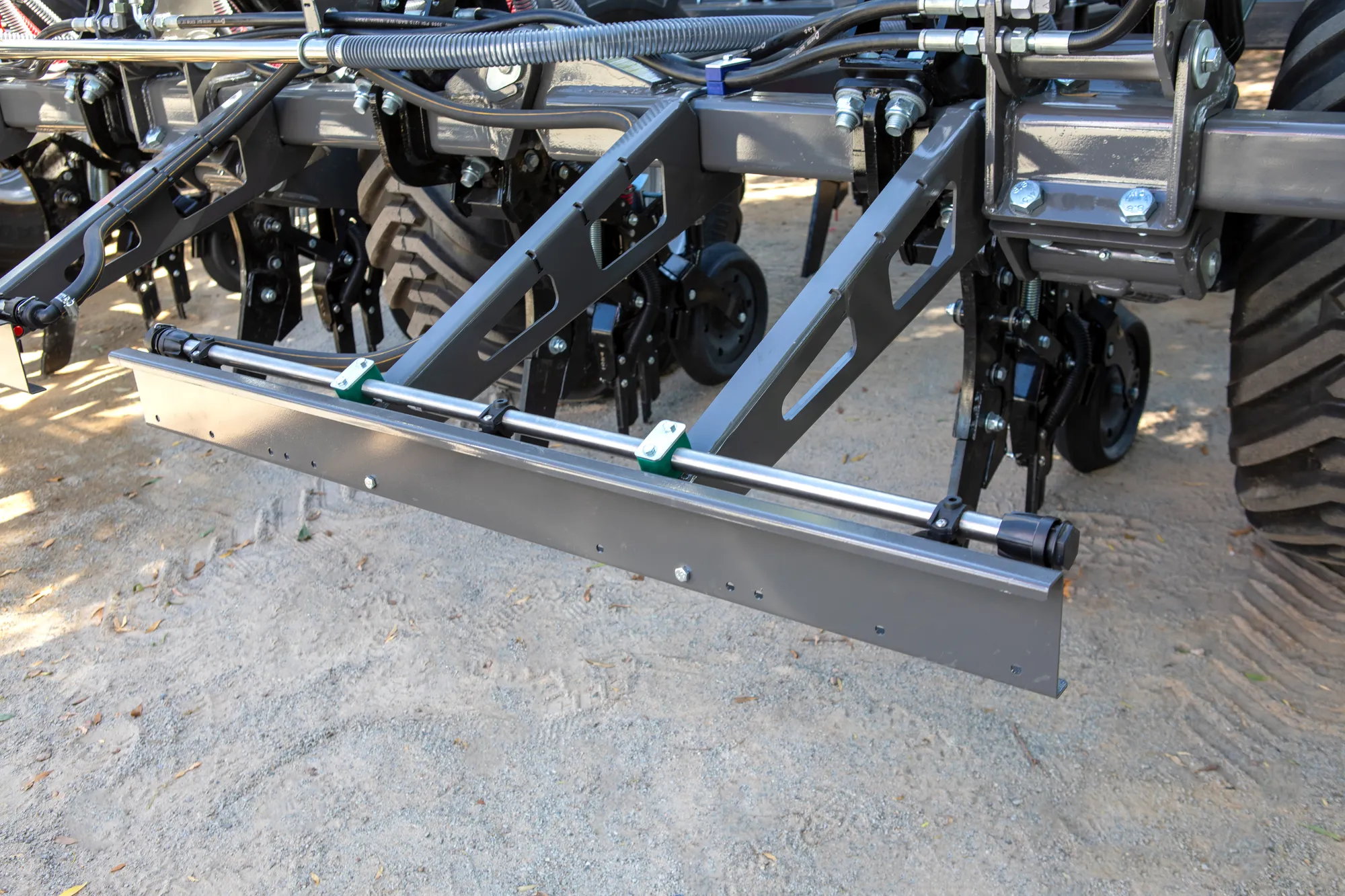

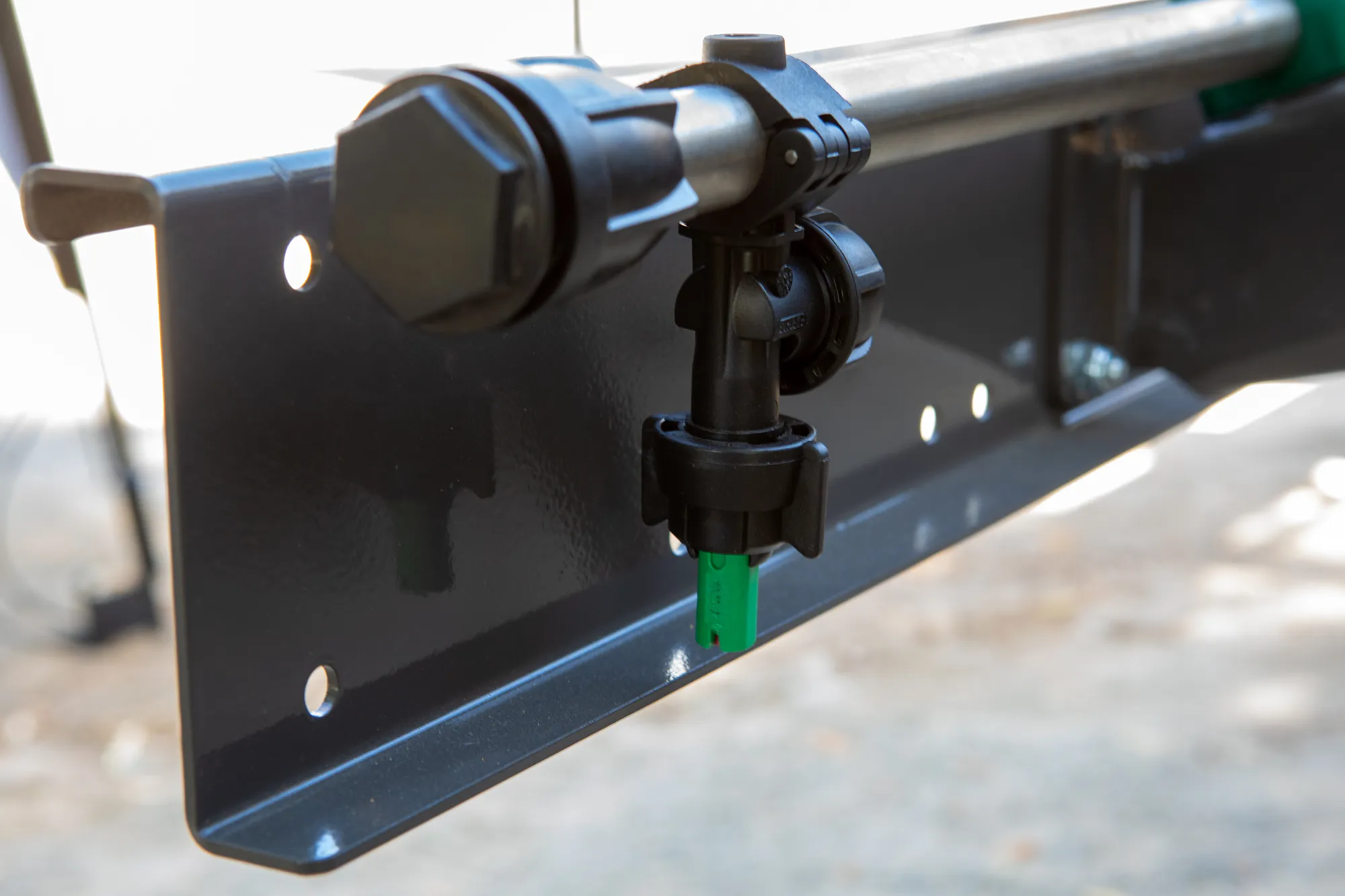

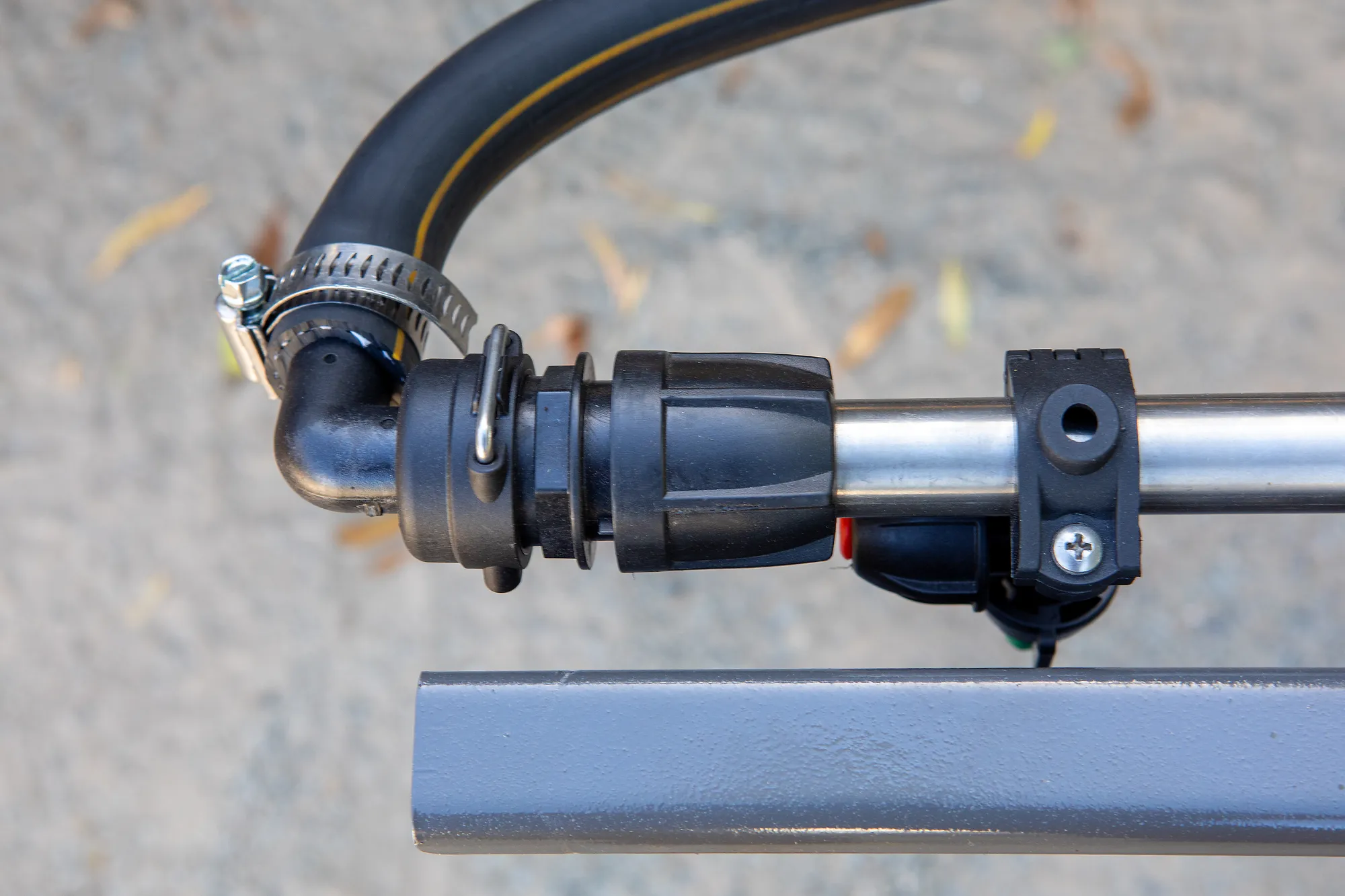

- Broadcast behind seeder - Seeders can be fitted with a spray boom on the front.

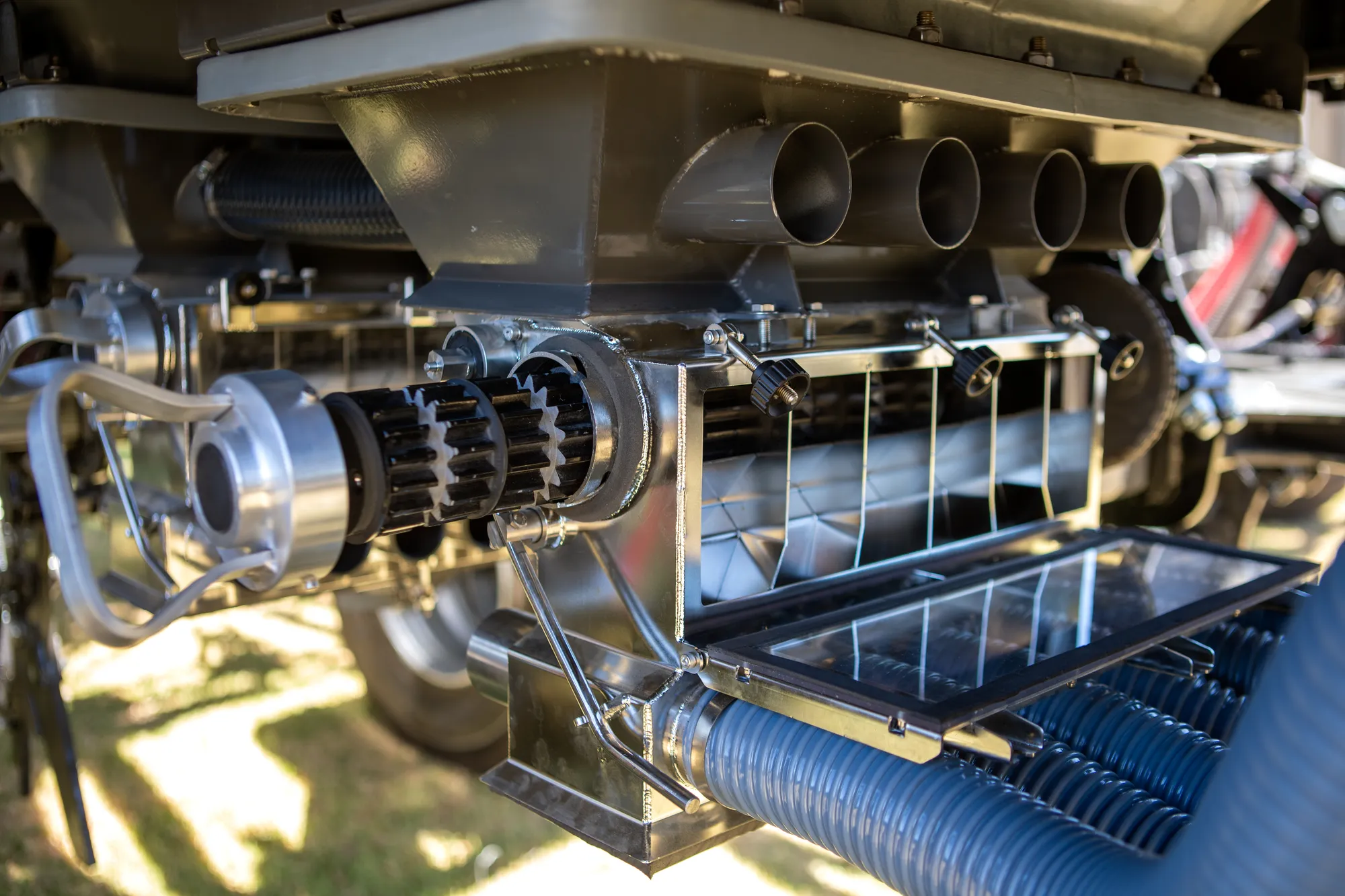

- Different type of seed rollers available for wheat, large pellets and fine seed.
- Load balancing on wings that will ensure an even planting depth.

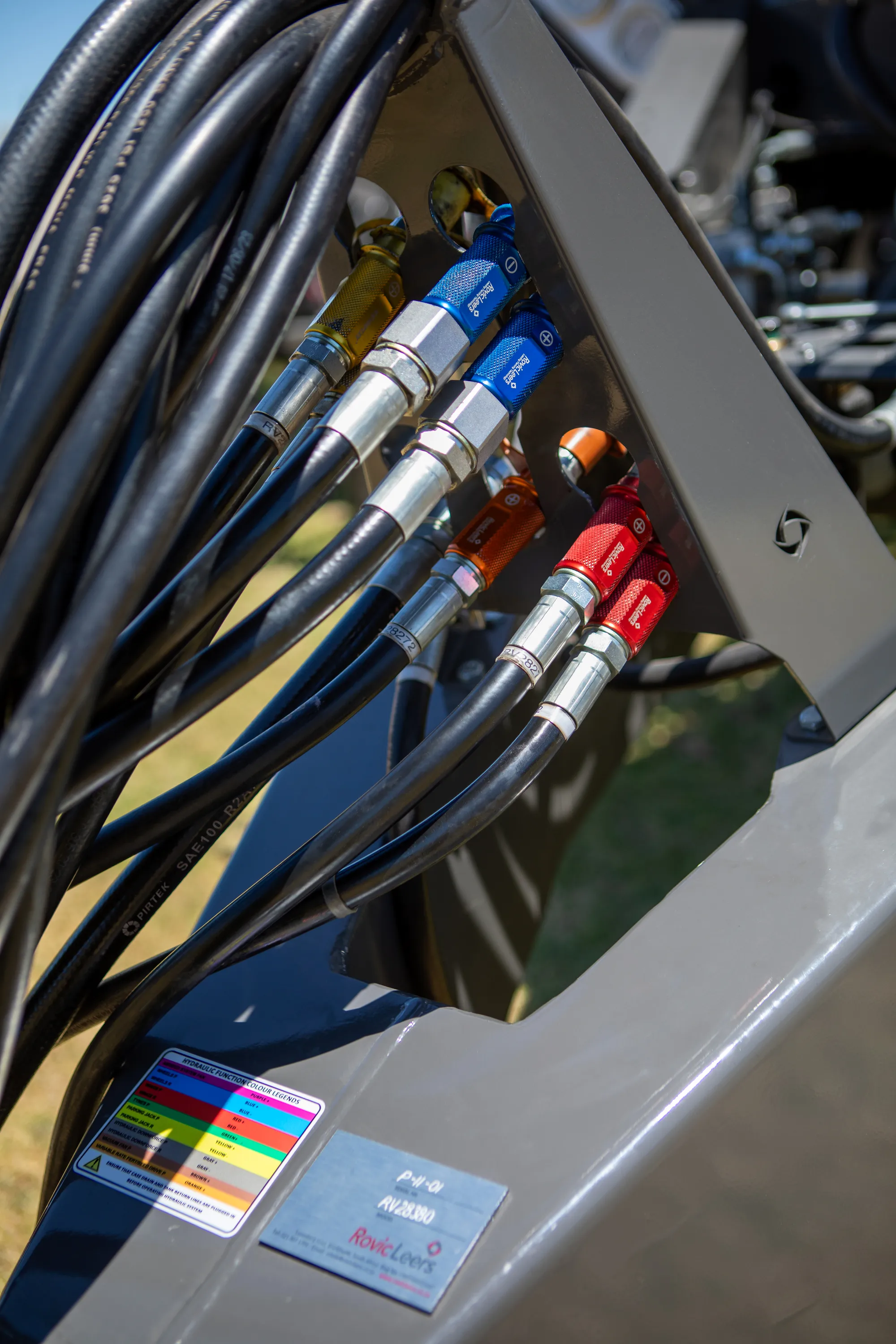

- Colour coded hydraulic couplings that will make connections easier for the operator.
- Ground clearance of 560mm at a working depth of 150mm.
- Fitted with self-cleaning rubber moulded V-shaped press wheel that minimises over-throw of soil to neighbouring row.
- Well known lower maintanance compared to other seeders in the market.
- Working lights fitted as standard
